When it comes to enhancing your child's riding experience, accessories like stabilisers and trailers can make a world of difference. This guide will walk you through the process of fitting these accessories to your Micro G-Bike Chopper , ensuring a smooth and safe ride for your little one. Let’s dive in!
Understanding the Accessories
Before we start the installation process, it’s essential to understand what each accessory does. Stabilisers provide additional support for young riders, helping them gain confidence as they learn to balance. Trailers allow for the transportation of other items or even additional passengers, making it easier for family outings.
Tools You’ll Need
- Two 5mm Allen keys (included with the bike)
- Phillips screwdriver
Installing the Stabilisers
To fit the stabilisers, you will need to remove the back wheel and the plastic mud guard. This process is simple and can be done by following these steps:
Step 1: Prepare the Bike
Begin by flipping the bike upside down. This position allows the bike to stand on its own, making it easier to work on.
Step 2: Remove the Back Wheel
Using the two 5mm Allen keys, remove the back wheel from the bike. Keep the wheel and bolts in a safe place as you will need them later.
Step 3: Remove the Mud Guard
The mud guard is secured with a Phillips screw. Unscrew this and set it aside for reinstallation later.
Step 4: Attach the Stabilisers
The stabiliser set consists of two parts: a top and a bottom. The bottom part slots into place underneath the bike. Ensure it is positioned correctly before securing it.
Next, take the top part and align it with the bottom. You will need to use four screws to secure the two parts together—two longer screws for the top and two shorter ones for the rear.
Step 5: Reattach the Back Wheel
Once the stabilisers are securely in place, you can reattach the back wheel. Make sure you hold the bolts in place while securing them to ensure everything fits snugly.
Removing the Stabilisers
At some point, your child may outgrow the need for stabilisers. Here’s how to remove them:
Step 1: Flip the Bike
As before, flip the bike upside down to access the stabilisers easily.
Step 2: Unscrew the Stabiliser Parts
Using the same four screws you used for installation, unscrew the stabilisers. Make sure to keep these screws safe for future use.
Step 3: Reattach the Mud Guard
Once the stabilisers are removed, reattach the mud guard using the Phillips screw you saved earlier. Ensure it is tightly secured to avoid any wobbling during rides.
Step 4: Reinstall the Back Wheel
Finally, put the back wheel back on, ensuring it is securely fastened. Your bike is now back to its original state, ready for your child to ride without stabilisers.

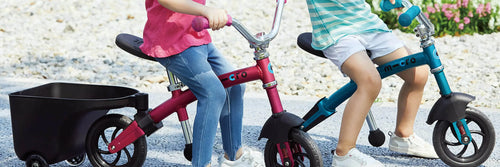

Installing the Trailer
If you have purchased a trailer for your Micro G-Bike Chopper, the installation process is just as straightforward. Here’s how to fit it:
Step 1: Prepare the Bike Again
Just like before, flip the bike upside down to make the process easier.
Step 2: Remove the Mud Guard
Start by removing the mud guard again, as the trailer’s fittings will require access to this area. Save the long screw for later use.
Step 3: Attach the Trailer Bracket
The trailer bracket should fit underneath the bike. Secure it with the long screw you saved from removing the mud guard. This bracket will hold the weight of the trailer.
Step 4: Secure the Clamps
You will also need to attach two sliding clamps to secure the trailer. Align them properly; they will only fit one way due to their design. Push them together to ensure they are locked in place.
Step 5: Finalize the Installation
Once everything is in place, reattach the mud guard using the original screw. Your trailer should now be securely fitted to the bike.
Removing the Trailer
When you want to take off the trailer , follow these simple steps:
Step 1: Flip the Bike
Again, flip the bike upside down for easy access to the trailer fittings.
Step 2: Remove the Bracket
Start by sliding the clamps apart to disconnect the trailer. This should be a simple motion that requires minimal effort.
Step 3: Reattach the Mud Guard
Once the trailer is removed, don’t forget to put the mud guard back on using the long screw you saved earlier. This step is crucial for maintaining the bike's aesthetics and function.
Step 4: Restore the Original State
Make sure everything is securely fastened, and your bike is back to its original state, ready for solo rides.
Conclusion
Fitting stabilisers and trailers to your Micro G-Bike Chopper can greatly enhance your child’s riding experience. By following these steps, you can ensure that the process is simple and efficient, allowing your child to enjoy their bike safely and confidently. Remember, the key to a successful ride is proper installation and maintenance of these accessories. Happy riding!
